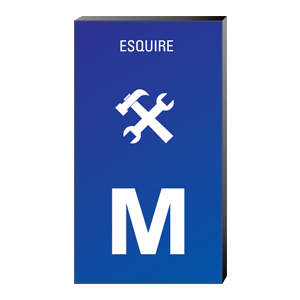

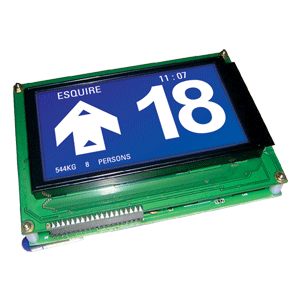

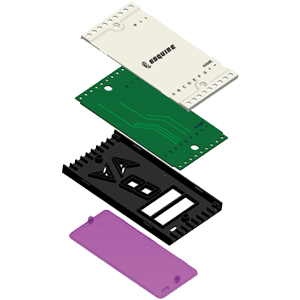

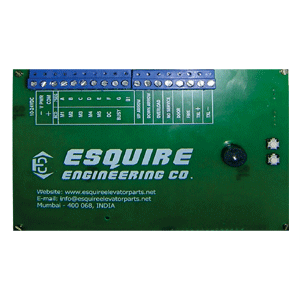

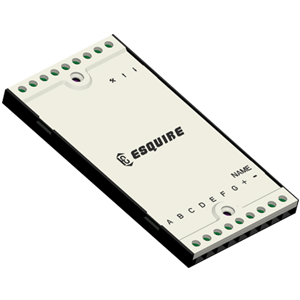

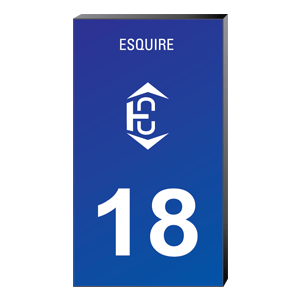

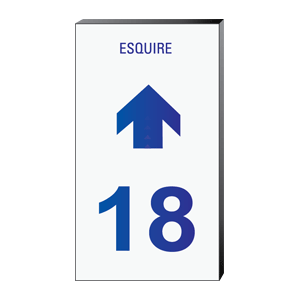

Esquire-Mini-lcd all Products
 |
 |
 |
 |
 |
 |

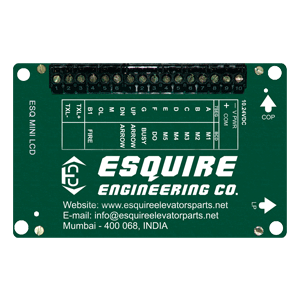

TEchnical specifications

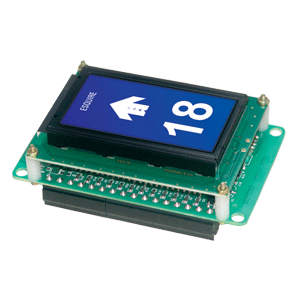

| Product Name | Esquire Mini |
| Product Type | Programmable graphic LCD |
| Resolution | 128 x 64 Pixel |
| Visible Area | 72 x 40mm |
| Dimensions PCB | 110 x 70 x 40mm |
| Input decoding | Seven Segment, BCD & Serial |
| Operating Voltage | 12 to 24VDC |
| Operating Current | (max) 45mA @ 24VDC |
| Signaling Common | Positive (+) Compatible |
| Power Supply | Switching Mode |
| Max Floor | 99 Stop* |
| Extra inputs seven segment | Overload & Maintenance |
| Extra inputs BCD | Overload, maintenance, door open, busy & fire |
| Extra inputs serial | Overload, maintenance, door open, & fire |
- Seven segment inputs up to 19 Floors & Two wire wiring with master card up to 99 floors.
- Alphabets, B,G,M,L,O,T,P,S,E,C,U.-1
- Reverse colour selection mode
- Moving message up to 50 characters in 8x8 size font inputted through computer interface
- Provision for company logo OR no smoking & Digital Clock
- Available in vertical as well as horizontal viewing position
- Colour Option : White / Blue, Blue / White

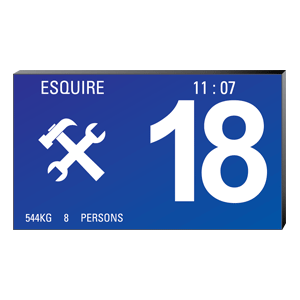

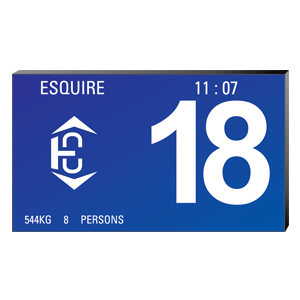

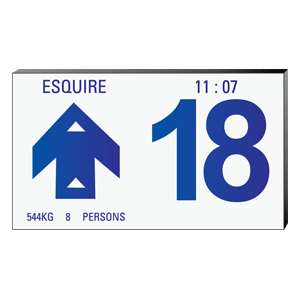

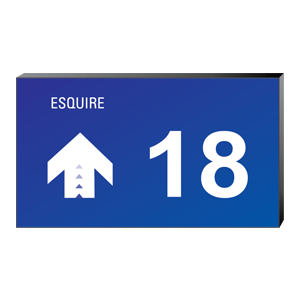

Esquire-xl-lcd all Products
 |
 |
 |
|
 |
 |
TEchnical specifications
| Product Name | Esquire XL |
| Product Type | Programmable graphic LCD |
| Resolution | 240 * 128 Pixel |
| Visible Area | 114 * 64mm |
| Dimensions PCB | 1358 * 145 * 40mm |
| Input decoding | Seven Segment, BCD & Serial |
| Operating Voltage | 12 to 24VDC |
| Operating Current | (max) 100mA @ 24VDC |
| Signaling Common | Positive (+) Compatible |
| Power Supply | Switching Mode |
| Max Floor | 99 Stop* |
| Extra inputs seven segment | Overload, Maintenance, door open & fire |
| Extra inputs BCD | Overload, maintenance, door open, busy & fire |
- Seven segment inputs up to 19 Floors & Two wire wiring with master card up to 99 floors.
- Alphabets, B,G,M,L,O,T,P,S,E,C,U.-1
- Reverse colour selection mode
- Moving message up to 80 characters in 16x16 size font
- 9 characters constant message in 16 x 16 Size font
- Clock, date & load capacity Display
- Provision for no smoking & Company logo
- overload Buzzer
- Colour Option : White / Blue, Blue / White

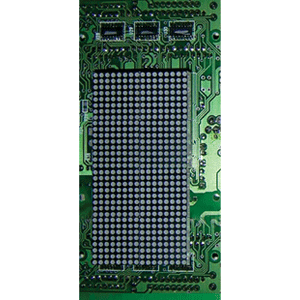

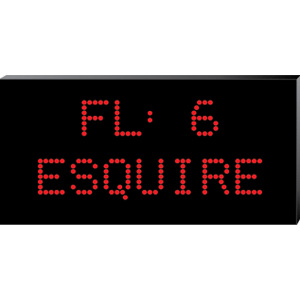

Dot Matrix Delux
 |
 |
 |
 |
 |
TEchnical specifications
| Product Name | Dot - Matrix delux C.O.P |
| Product Type | Dot - Matrix dislay 8 * 8(Big 8 block) |
| Resolution | 32 * 16 Pixel |
| Visible Area | 80 * 40 mm |
| Dimensions PCB | 125 * 125 * 25mm |
| Input decoding | Seven Segment & Serial |
| Operating Voltage | 12 to 24VDC |
| Operating Current | (max) 300mA @ 24VDC |
| Signaling Common | Positive (+) Compatible |
| Power Supply | Switching Mode |
| Max Floor | 99 Stop* |
| Extra inputs seven segment | Overload & Maintenance |
| Extra Function | Clock & Moving Messages |
| Extra inputs serial | Overload, maintenance, door open, busy & fire |
- Seven segment inputs up to 19 Floors & Two wire wiring with master card up to 99 floors.
- Alphabets, B,G,M,L,O,T,P,S,E,C,U.-1
- Moving message up to 80 characters in 16x16 size font
- Colour Option : Red, Green, Blue And White (Sub. to availability)

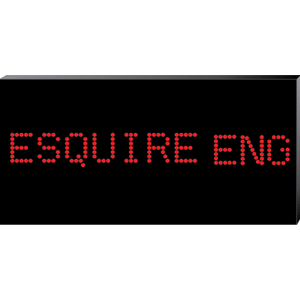

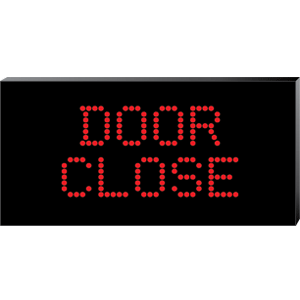

Message Cards All Products
 |
 |
 |
 |
Technical specifications

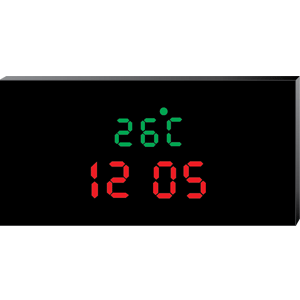

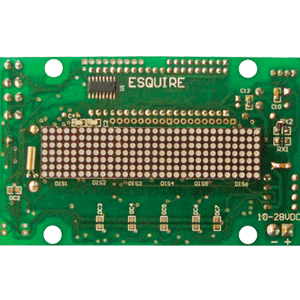

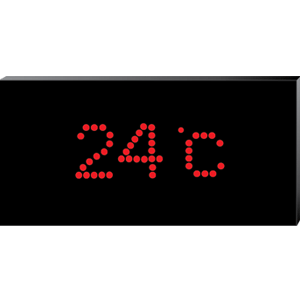

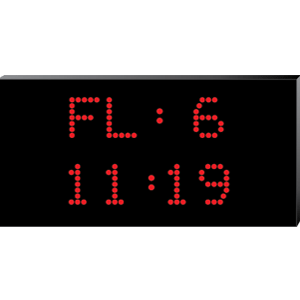

| Product Name | Clock Temp. with Scrolling Messages |
| Function | Temperature, clock & moving display |
| Resolution | 7 * 30 Pixel |
| Visible Area | 18 * 76 mm |
| Dimensions PCB | 110 * 70 * 25mm |
| Input feeding | Computer Interface |
| Operating Voltage | 12 to 24 VDC |
| Operating Current | (max) 200mA @ 24VDC |
| Power Supply | Switching Mode |
- Moving message up to 500 characters in 5 * 7 size front inputted through computer interface.
- Colour options : Red, blue, Green & White (Sub. to availability)

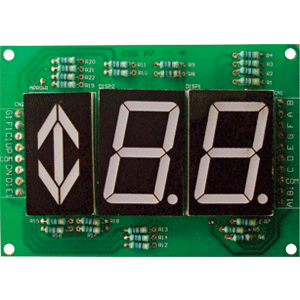

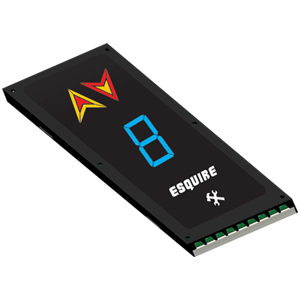

Segment Display
| Big 7 - Segment Display 1.8 inch |
 |

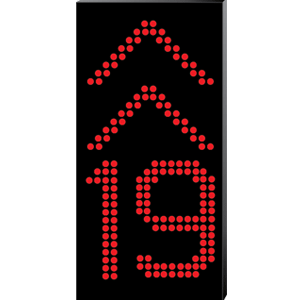

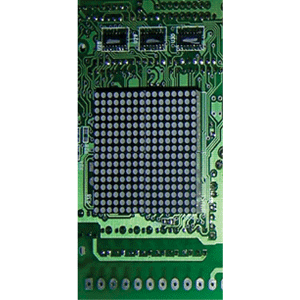

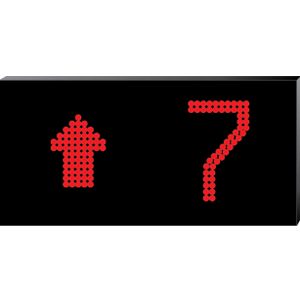

DOT-MATRIX DELUX L.P. (Big)
| DOT-MATRIX DELUX L.P. | |
 |
 |
Technical specifications
| Product Name | Dot - matrix Delux L.p. (Big) |
| Product Type | Dot - matrix display 8*8*8 blocks(20mm blocks) |
| Resolution | 32 * 16 Pixel |
| Visible Area | 80 * 40 mm |
| Dimensions PCB | 120 * 68 * 40mm |
| Input Decoding | Seven Segment & Series |
| Operating Voltage | 12 to 24 VDC |
| Signaling Common | Positive(+) Compatible |
| Power Supply | Switching Mode |
| Max Floor | 99 Stop* |
| Extra Input Seven Segment | Overload & Maintenance |
| Extra input Serial | Overload, Maintenance, Door Open & Fire |
- Seven Segment inputs up to 19 Floor & Two wire wiring with master card up to 99 floors.
- Alphabets ,B, G,M, L, O, T, P, S, E, C ,U-1
- Colour options : Red, Blue, Green & White (Sub to availability)
DOT-MATRIX DELUX L.P. (Small)
| DOT-MATRIX DELUX L.P.(Small) | |
 |
|
Technical specifications

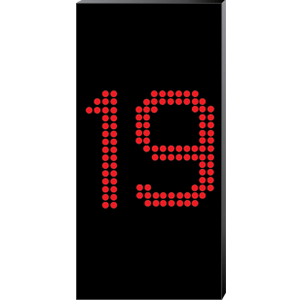

| Product Name | Dot - matrix Delux L.p. (Small) |
| Product Type | Dot - matrix display 8*8*8 blocks(20mm blocks) |
| Resolution | 16 * 16 Pixel |
| Visible Area | 40 * 40 mm |
| Dimensions PCB | 108 * 68 * 15mm |
| Input Decoding | Seven Segment & Series |
| Operating Voltage | 12 to 24 VDC |
| Signaling Common | Positive(+) Compatible |
| Power Supply | Switching Mode |
| Max Floor | 99 Stop* |
| Extra Input Seven Segment | Overload & Maintenance |
| Operating Current | Overload & Maintenance |
- Seven Segment inputs up to 19 Floor & Two wire wiring with master card up to 99 floors.
- Alphabets ,B, G,M, L, O, T, P, S, E, C ,U-1
- Options : Floor Position and arrow display for regular L.O.P. or only position display for lanterns.
- Colour options : Red, Blue, Green & White (Sub to availability)
Rainbow Display All Products
 |
 |
 |
 |
- Rainbow Display is Availible in Surface Mount, flush Mount & In c.o.p.

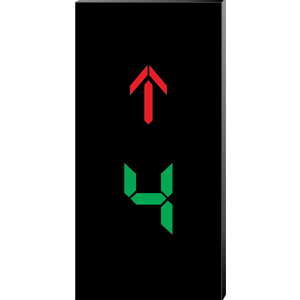

Other Display

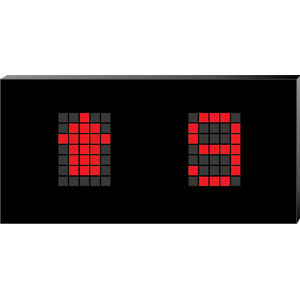

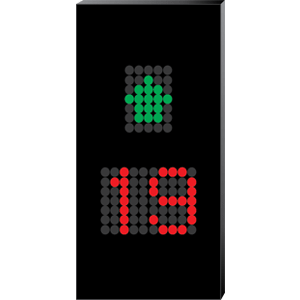

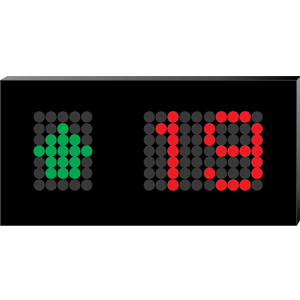

| Dot Matrix Round C.O.P. | Dot Matrix Round H.B. | Dot Matrix Square C.O.P. |
 |
 |
 |

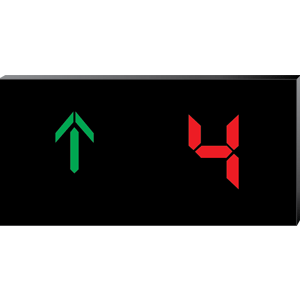

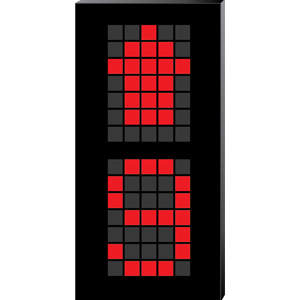

| Dot Matrix Square H.B. | Seven Segment C.O.P. | Seven Segment H.B. |
 |
 |
 |

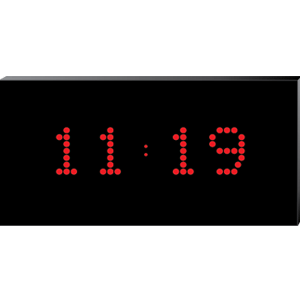

| Clock & Temp. Display | |
 |
